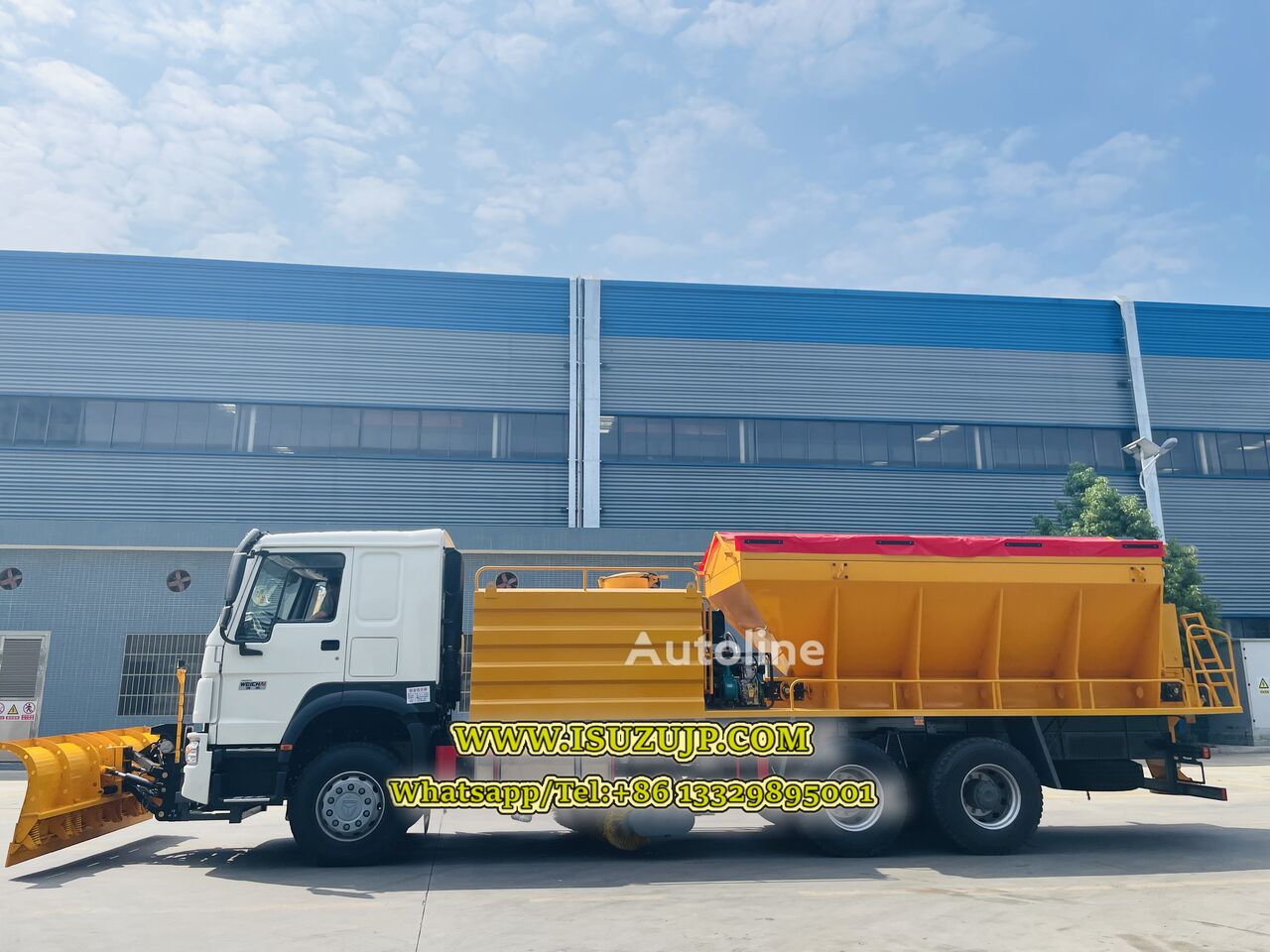

新除雪车 Isuzu Snow clearing vehicle

We production Euro 2 3 4 5 6 Snow clearing vehicle

Chengli Group is the largest special-purpose vehicle manufacturer in China. We can customize ISUZU, FOTON, HOWO, SINO, JAC, SHACMAN, DONGFENG, JMC and other brand trucks according to your needs.

General Technical Parameters
Overall Dimension 9600×2550×3600(mm)
Gross Vehicle Weight 35000(Kg)
Curb Weight 20000(Kg)
Chassis Specification
Chassis Brand ISUZU
Drive model 6x4
Cabin Left Hand Driving, with air conditional
Number of Passengers 3
Engine Power 279KW/380HP
Emission standard EURO VI
Displacement 9839(ml)
Fuel type Diesel
Gearbox FAST 12Forwards & 1Reverse
Brake System Air break
Wheel Base 4600+1370 mm
Front/Rear Axle Loading 9000/26000(Kg)
Tire 315/80R22.5
Max Driving Speed 105(km/h)
8m3 Snow melting spreader(Placed in the box, easy to disassemble.) Spreader box material: Q235 high quality carbon steel
Conveying form: chain scraper
Spreading width: 2-12m
Spreader disc material: stainless steel
Amount of salt spread: 20-200g/m2 (adjustable)
Spreading disc diameter: 600mm
Working speed: 5-20km/h
Control method: wired remote control
Anti-corrosion paint

Front snow shovel (1) Snow shovel operating width: 3500mm;
(2) Snow shovel left and right swing angle 0-30°;
(3) Snow shovel hydraulic cylinder adopts hydraulic drive, one left and one right cylinder drive can be adjusted, and the upper cylinder drive equipment has functions such as up and down adjustment.
(4) Snow shovel lifting and swinging cylinders adopt cylinder design, which is reliable and stable;
(5) Reasonable layout of oil pipes, with pipes running around the snow shovel to prevent snow and debris accumulation;
(6) Snow shovel control system is perfectly matched, which can more effectively control the flow, avoid oil temperature rise, and ensure long-term normal operation in any season;
(7) The snow shovel power circuit is connected to the chassis battery. Through remote control operation, the operation of the snow shovel hydraulic system does not affect other functions of the vehicle, and function conversion can be conveniently performed.
(8) Blade material: NM400 is a high-strength wear-resistant steel plate.
(9) Obstacle avoidance method: overall flip obstacle avoidance
(10) Control method/drive method: wired remote control/independent hydraulic unit

Center roller brush Snow removal roller brush: 3.5 meters
Brush blade diameter: 800mm
Left and right adjustment: ±20 degrees
Speed: 5-45km/h
Obstacle avoidance height: 250mm
Brush blade material: a mixture of polypropylene and elastic steel wire.
The roller brush adopts SQH quick connection system: with the quick connector of the oil circuit, it can be quickly separated and installed from the vehicle body.
Control mode | Drive mode: remote control | independent hydraulic unit, hydraulic motor, oil pump, reversing valve, power take-off, hydraulic oil radiator, oil tank, hydraulic quick connector, quick power connector, warning light.
